09-14-2009, 11:06 PM
|
#1
|
|
Ayatollah of Rock N Rolla / Admin
Join Date: Mar 2006
Location: Parts Unknown
Posts: 12,573
|

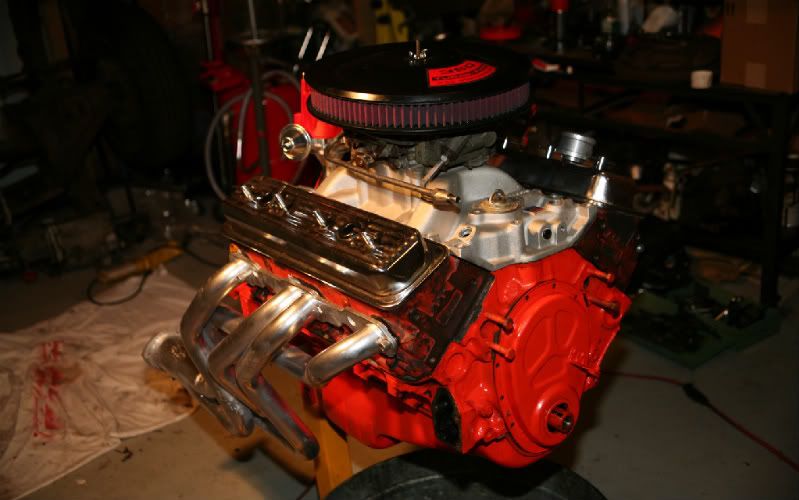

Quickie progress shot
No, the headers, manifold, carb, and timing cover aren't final. Just in place for a test fitting. And it still needs a final paint job and other stuff. But the engine work is coming along. Heads are on, cam and oiling system are done. Hopefully ready to roll sometime this fall.
Last edited by WildBillyT; 09-14-2009 at 11:07 PM.
|
|
|
|
09-14-2009, 11:07 PM
|
#2
|
|
Mongo the Meet Coordinator
Join Date: May 2008
Posts: 16,938
|
Certainly looks good!
__________________
Quote:
Originally Posted by KirkEvil
repo bigals turd gen and part it out to a loving home
|
|
|
|
|
|
09-14-2009, 11:11 PM
|
#3
|
Join Date: Aug 2004
Location: North Jersey
Posts: 3,047
|
Looking good, I spy Vortecs!! Care to share any more details on the motor?
__________________
Seeya,
Steve R. in North Jersey
'16 Go-Mango Dodge Charger R/T. It's so good to be back in a V8-powered, RWD car!
Former Toy - '88 Monte SS - had lots of mods...
|
|
|
|
|
09-15-2009, 12:23 AM
|
#4
|
|
12 Second Club
Join Date: Mar 2009
Location: metuchen, nj
Posts: 1,476
|
lookin good man. what car is it going in
__________________
|
|
|
|
|
09-15-2009, 07:17 AM
|
#5
|
|
Meet Coordinator
Join Date: Jan 2008
Location: brick/pt. pleasant beach
Posts: 19,368
|
lookin nice!
|
|
|
|
|
09-15-2009, 07:33 AM
|
#6
|
Join Date: Oct 2007
Location: Sewell, NJ
Posts: 1,044
|
NCIE!
|
|
|
|
|
09-15-2009, 07:59 AM
|
#7
|
|
Ebearnezer Scrooge/Power Member/Lips
Join Date: May 2006
Location: Hamilton, Mercer county
Posts: 4,141
|
Make sure you get spray paint down all the water jackets and in ports and stuff too. I would get an oil based pain and spray the crank down while you are at it.
Looks good!
PS You still have my Wheelrite?
Last edited by PolarBear; 09-15-2009 at 07:59 AM.
|
|
|
|
|
09-15-2009, 08:16 AM
|
#8
|
|
Ayatollah of Rock N Rolla / Admin
Join Date: Mar 2006
Location: Parts Unknown
Posts: 12,573
|
Quote:
Originally Posted by PolarBear
Make sure you get spray paint down all the water jackets and in ports and stuff too. I would get an oil based pain and spray the crank down while you are at it.
Looks good!
PS You still have my Wheelrite?
|
Thanks guys! Engine is this:
9.6:1 350
Melling oil pump+pickup
062 Vortec heads w/ Manley valves, screw in studs, and LT4 springs
True roller timing chain
Comp XE268 cam, Comp CM pushrods
Edelbrock Performer mani
650CFM Holley
MSD Pro Billet Distributor
Hooker Headers
Going into a '68 Nova.
PB: Yep, I have it and plan on bringing it to you next time I see you. If you need it now I can meet you somewhere or mail it, no biggie. I've had it for a while and am all finished with it.
Last edited by WildBillyT; 09-15-2009 at 08:29 AM.
|
|
|
|
|
09-15-2009, 11:38 AM
|
#9
|
|
Mongo the Meet Coordinator
Join Date: May 2008
Posts: 16,938
|
LT4 springs!!!!!!!!!!!!
There is some hope for this engine.
__________________
Quote:
Originally Posted by KirkEvil
repo bigals turd gen and part it out to a loving home
|
|
|
|
|
|
09-15-2009, 11:53 AM
|
#10
|
|
Ayatollah of Rock N Rolla / Admin
Join Date: Mar 2006
Location: Parts Unknown
Posts: 12,573
|
Quote:
Originally Posted by ShowSomePromise
LT4 springs!!!!!!!!!!!!
There is some hope for this engine. |
The LT4 cam and the XE268 have similar lifts- within .003 on the intake, and exactly the same on the exhaust.
|
|
|
|
|
09-15-2009, 11:54 AM
|
#11
|
|
Mongo the Meet Coordinator
Join Date: May 2008
Posts: 16,938
|
So what should this motor put down?
__________________
Quote:
Originally Posted by KirkEvil
repo bigals turd gen and part it out to a loving home
|
Last edited by LTb1ow; 09-15-2009 at 11:58 AM.
|
|
|
|
|
09-15-2009, 12:27 PM
|
#12
|
|
Ayatollah of Rock N Rolla / Admin
Join Date: Mar 2006
Location: Parts Unknown
Posts: 12,573
|
Quote:
Originally Posted by ShowSomePromise
So what should this motor put down?
|
I figure they are good enough for the cam that's in there and I don't have to really worry about them wiping the cam lobes during break in. That's not to say I'm not nervous about that process.
According to Comp it should be good for 395hp@5500, 425lb-ft@2500. I figure I'm good if it puts out 360/400 or so. I won't really spin it past 5500 anyway.
Last edited by WildBillyT; 09-15-2009 at 12:29 PM.
|
|
|
|
|
09-15-2009, 03:09 PM
|
#13
|
|
Ebearnezer Scrooge/Power Member/Lips
Join Date: May 2006
Location: Hamilton, Mercer county
Posts: 4,141
|
What did you wind up doing about the compression issue? I forgot if you already went over all of that
|
|
|
|
|
09-15-2009, 03:23 PM
|
#14
|
|
Ayatollah of Rock N Rolla / Admin
Join Date: Mar 2006
Location: Parts Unknown
Posts: 12,573
|
Quote:
Originally Posted by PolarBear
What did you wind up doing about the compression issue? I forgot if you already went over all of that
|
Backed the cam off from a 274XE to a 268XE and went with .015 steel shim head gaskets. I talked to comp and the 274XE would have been on the edge at 9.5:1.
The big seller was that the torque jumped up by 10 lb-ft and moved down the curve by 2000RPM when I went with the smaller grind. With a weight of 3000lbs, a 2.52 first, 4.11 rear, and that much grunt down low it should be a blast.
Last edited by WildBillyT; 09-15-2009 at 03:25 PM.
|
|
|
|
|
09-15-2009, 03:25 PM
|
#15
|
|
Ebearnezer Scrooge/Power Member/Lips
Join Date: May 2006
Location: Hamilton, Mercer county
Posts: 4,141
|
Good luck driving that around on the highway.  I am sooooo glad I put the 3:42's in the 73, now I can cruise at the same RPM I was driving around town at! Now I just need to get the 3:45's in the 91 GTA and I will be set
|
|
|
|
|
09-15-2009, 03:27 PM
|
#16
|
|
Ayatollah of Rock N Rolla / Admin
Join Date: Mar 2006
Location: Parts Unknown
Posts: 12,573
|
Quote:
Originally Posted by PolarBear
Good luck driving that around on the highway. I am sooooo glad I put the 3:42's in the 73, now I can cruise at the same RPM I was driving around town at! Now I just need to get the 3:45's in the 91 GTA and I will be set |
LOL. Well, I have a T56, adaptor SFI bell, and a T56 crossmember sitting there for when I get the scratch for that. If not, 9" center sections FTW
|
|
|
|
|
09-15-2009, 03:57 PM
|
#17
|
Join Date: Apr 2006
Location: Point Pleasant
Posts: 1,809
|
Very nice. When I finally put something together for the regal I'll be going the 268 route. As ya said its a very reliable 390-420 hp build with a good curve. I'm hoping to do TPI though.
How much ya have into the heads?
__________________
-Vinnie
94 2wd SBSC Gmt400. 330CI LSX, Fast 102, Trickflow 205s, close ratio nv3500, 4.30/trutrac.
|
|
|
|
|
09-15-2009, 04:02 PM
|
#18
|
|
Ayatollah of Rock N Rolla / Admin
Join Date: Mar 2006
Location: Parts Unknown
Posts: 12,573
|
Quote:
Originally Posted by r0nin89
Very nice. When I finally put something together for the regal I'll be going the 268 route. As ya said its a very reliable 390-420 hp build with a good curve. I'm hoping to do TPI though.
How much ya have into the heads?
|
$300. I bought them from Ian that way, with the valve covers. They looked to be in great shape so I just cleaned them up and bolted them on.
Last edited by WildBillyT; 09-15-2009 at 04:02 PM.
|
|
|
|
|
09-15-2009, 04:04 PM
|
#19
|
Join Date: Apr 2006
Location: Point Pleasant
Posts: 1,809
|
The valves oversized or nein?
__________________
-Vinnie
94 2wd SBSC Gmt400. 330CI LSX, Fast 102, Trickflow 205s, close ratio nv3500, 4.30/trutrac.
|
|
|
|
|
09-15-2009, 04:06 PM
|
#20
|
|
Ayatollah of Rock N Rolla / Admin
Join Date: Mar 2006
Location: Parts Unknown
Posts: 12,573
|
Quote:
Originally Posted by r0nin89
The valves oversized or nein?
|
Stock size.
|
|
|
|
|
09-15-2009, 04:38 PM
|
#21
|
Join Date: Jan 2007
Posts: 5,623
|
OMGOVERSPRAYONTHECRANKROFL
nice man, looks good and sounds like a good combo.
__________________
2000 Tahoe Z71 5.7
1982 Z28 Pacecar 305
1999 S10
|
|
|
|
|
09-15-2009, 05:30 PM
|
#22
|
Join Date: Apr 2006
Location: Point Pleasant
Posts: 1,809
|
Hey lemme see those pics of ur regal. Btw I'm gonna PM you about a parts car I'm getting.
__________________
-Vinnie
94 2wd SBSC Gmt400. 330CI LSX, Fast 102, Trickflow 205s, close ratio nv3500, 4.30/trutrac.
|
|
|
|
|
09-15-2009, 07:18 PM
|
#23
|
|
Ayatollah of Rock N Rolla / Admin
Join Date: Mar 2006
Location: Parts Unknown
Posts: 12,573
|
Quote:
Originally Posted by bubba428
OMGOVERSPRAYONTHECRANKROFL
nice man, looks good and sounds like a good combo.
|
Yes, but it's not going into the car like that. I can't take credit for the entire spray bomb job, either. I cleaned a lot of it off already.
Last edited by WildBillyT; 09-15-2009 at 07:19 PM.
|
|
|
|
